Category Archives: For Sale Elden MK10C, AM73-79

Elden MK10C For sale

For Sale Elden MK10C FF AM 73-79

Posted on by
4

1973 Elden MK10C Racing At High Plains Raceway 8/1/2021

1973 Elden MK10 C Formula Ford, Chassis # AM 73-79        $22k OBO

Complete log books since new.

Complete restoration 2019, include:

1) new lightweight body from Marchant Cox 2018, $1500

2) Total Precision Engine built in 2016, head rebuilt 2019.  All receipts and Dyno sheets available

3) New Ron Davis aluminum side radiators

4) Harmon Fuel cell built 2017, unused until 2019

5) Spax single adjustable shocks

6) New billet steel Imp rear stub axles from PA Motorsports 2021. This was a $800 upgrade

7) Frame was checked and Aluminum floor added.

8) Many new rod ends,

9) New gauges.

10) Belts expire 2022

Complete setup sheets, 2 year old Hoosier VFF tires, Performance Friction Brakes,

Spares are MK10C nose and old nose buck, used rear engine cover and carb snorkel, original brass radiators, one spare set of Weller wheels, 2 set of gears; short track and long track.

Car was raced this past Aug 1 at High Plains Raceway and is ready to go again.

Reason for selling?  I have 2 more Elden’s and need to reduce the collection.  I have done allot of research on Elden’s in the US and have developed contacts in the UK and US to support the restoration.  A registry of Elden’s in the US is on my web site:

https://lchrestoration.com/wp-content/uploads/2018/07/new-elden-register-by-me-version-1-version-1.pdf

Willing to help with transport for expenses up to 1000 miles.

Ask all you questions. If there is a specific photo you require, advise.

Thanks for looking.

Update May 15, A late start to the season

Posted on by
Reply

Thought I would catch up with all the going ons of this winter.

Last winter I decided to take the blue 027, AM74-5 apart for refurbishment.  The original Farley engine was 4 years old and starting to show loss of compression and leak down.  Since Curtis has retired from the business I move to a local Colorado engine guy, Pete Christensen of Total Precision Engines, http://www.totalprecisionengines.com.

We decided on a new block and rods and pistons.  Total rebuild looks good on the dyno!

At the same time I shipped the engine I crated up the Hewland to go to Taylor Race Engineering.  Handed off the crate to the trucking company here in Santa Fe and on the way to El Paso to transfer trucking companies, the crate was LOST.  What?  How do you lose a 100 pound black tool box in 50-75 miles?  Learned a valuable lesson.  Insure your freight.  I didn’t insure and the trucking company was willing to settle the loss for 10 cents/pound!   Lots of phone calls etc.  Finally issue was resolved when Vice-Pesident of company admitted they lost and we settled on a value of a used Hewland gearbox.

I was able to take a spare Hewland and ordered the stub axles to convert it from cv’s to donuts.  Also that box was a 5 speed and I changed out the lay shaft to a 4 speed.

All of this took and incredible amount of time waiting for parts etc. I probably wasted to much time waiting for the trucking company to resolve the loss/claim.  Anyway May 8 the blue Elden was at Sandia Speedway for its first shakedown.  Mostly everything was okay but a nagging handling problem needs to be addressed.

Red Elden #53, AM 73-79 ran in a solo event last October.  When we unloaded it from the trailer found a broken rear stub axle.  The Hillman Imp axles are very weak.  So I went on a search for an upgraded solution.  The Lotus Europa uses the same axles and several ideas have been used.  Couldn’t find a supplier.  Finally found a sastisfactory replacement.  Still need a long term solution.

In the last solo event the engine would bog badly at launch.  Found timing way off.  At the first race the engine seemed weak.  I bought this as used low time engine.  But to make the story short, wrong jets in carb, timing off, # 2 cylinder down on compression and leak down on # 2 -18%!   Other cylinders at 1-2% leak down.  So sending the head to Total Precision Engines for a head rebuild.

So we are now waiting for engine parts.  Trying to evaluate the shift mechanism.  Went back through the u-joints and eliminated all slop.  But the shift 1st to 2nd is almost 2 1/2″ throw.  The rotation from 2nd to 3rd is nearly 3″.   My Van Dieman FC the throw is 1″ and rotation is approx 1 1/2″   So I’m looking to change if possible.

Next race is Sandia Speedway with SWMS, http://www.swms.org, June 1-2 and immediately June 8-9 at Pueblo Motorsports Park with RMVR, http://www.rmvr.com.  Goal is to take 2 cars to each race.

Will update after the June races.





1973 Elden MK10C First Day at Track!

Posted on by
2

Firts track day 2018

Today we got AM73-79 out to Sandia Motor Speedway in Albuquerque, NM for its initial outing following restoration.

We got this car from Tim H in Tulsa, OK back in 2013.  Jay Davis a previous owner of this car actually stopped and saw the car several years ago and helped with its history.

I ordered a new body from Marchant and Cox, minus the radiator shrouds.  Car ran good.  I’m worried about those small aluminum radiators in our heat and dry air.  It was 90+ degrees out and I limited rpm’s to 5500 and water temps sat at 90 deg C  and oil was 90 deg C.  So there is hope?

I changed the location of the shifter down an inch and it seems much more comfortable. Can’t wait to try AM74-5 (Falconer bodied) which has the same change.  Change was necessary as the sheet metal plate that holds the front end of the shift rod at the bulkhead was severely cracked  allowing excess movement.

So now into the shop for inspection and getting it ready for some solo work the rest of the year.  Maybe track time if things work out.

Larry



Update 7/4/2017 Elden FF 73-79

Posted on by
Reply

Well lets update the world.  We received a new a new body from Len at Marchant and Cox in the UK:

http://www.marchantandcox.co.uk/m-and-c-moulds

The Elden was originally a MK10 C which had the radiators mounted on the side of the chassis behind the front wheels.  So that is what we are restoring.  Steve C was working in the shop and began moving all the “bits” from Elden 73-39, the bent chassis, and began installing into this chassis.

Engine is a 4 hour old, iron head engine built by Pete Christensen in Fort Collins, Colorado at Total Precision Engines.  This engine had a brand new 711M block and Scat crank.

http://totalprecisionengines.com/PeteChristensen.php

The gearbox on this Elden was rebuilt by Taylor Race Engineering many years ago and never even had fluid put into it.

http://taylor-race.com/

So before Steve C could get to far along I decided we needed to mount the body as the side panels cannot be removed without removing the radiators and suspension.  Many of the mounting tabs had been removed in a past life, so I manufactured new ones.  The nose structure, holding the nose cone, had been removed and lost.  So with the luck of having Elden #4, an very original MK10C, was able to use its chassis to mimic the nose cone box.  One change will be the removal of the battery from the nose cone location to another place in the chassis.

Here is a picture of the nose cone structure from Elden MK10C 73-74:

IMG_1016

New nose cone support structure on 73-79

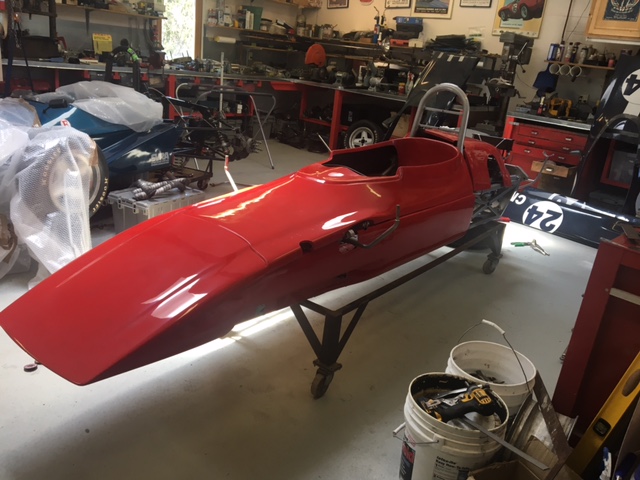

Now a picture of the body mounted to the car.

IMG_1024

Still need to design some Aluminum radiators that will fit the radiator shrouds and mount to the side panels.  Also I am building a 20 gauge Aluminum panels to mount to the side of the chassis to separate the water transfer tubes from the driver compartment.

So anyway the work continues.

Update May 2017

Posted on by
2

Well it has been a bit of time since I have updated this blog.  Since Oct last years we did our normal traveling in the fall and then spent most of the winter working on Elden AM74-5 and 73-39 and Am73-79

Elden 74-5 was found to have mismatched front uprights.  One was 1/2 ” taller offsetting the hub center line.  Borrowed 2 different ones from our last acquisition and began a search for new replacements.  Was introduced to 2 potential suppliers in the UK. One private individual and another a race shop:

https://www.mk8motorsport.com/

I also spoke to Pat Prince at Pat Prince  Engineering and he has the jigs for the suspension parts.  So soon I will be sending the stuff I need to Pat for repair or fabrication.

We are now running the new Hoosier VFF treaded tires a bit difference that the slicks I have run for years.  But we are nearing an optimum setup.

Elden #2 was nearing completion for this racing season.  Note I am doing preservation not restorations so I don’t strip down the car. When I picked up the car there was an invoice to “straighten the frame”.  Well it is still “bent”.  I couldn’t align the car, ran strings down the chassis found the rear sub frame tweaked 1/2″ at least.  So work has stopped.

Elden #3 AM-73-79 is getting a new body.  The old body had been cutup and missing some parts so I ordered a new body from:

http://www.marchantandcox.co.uk/m-and-c-moulds

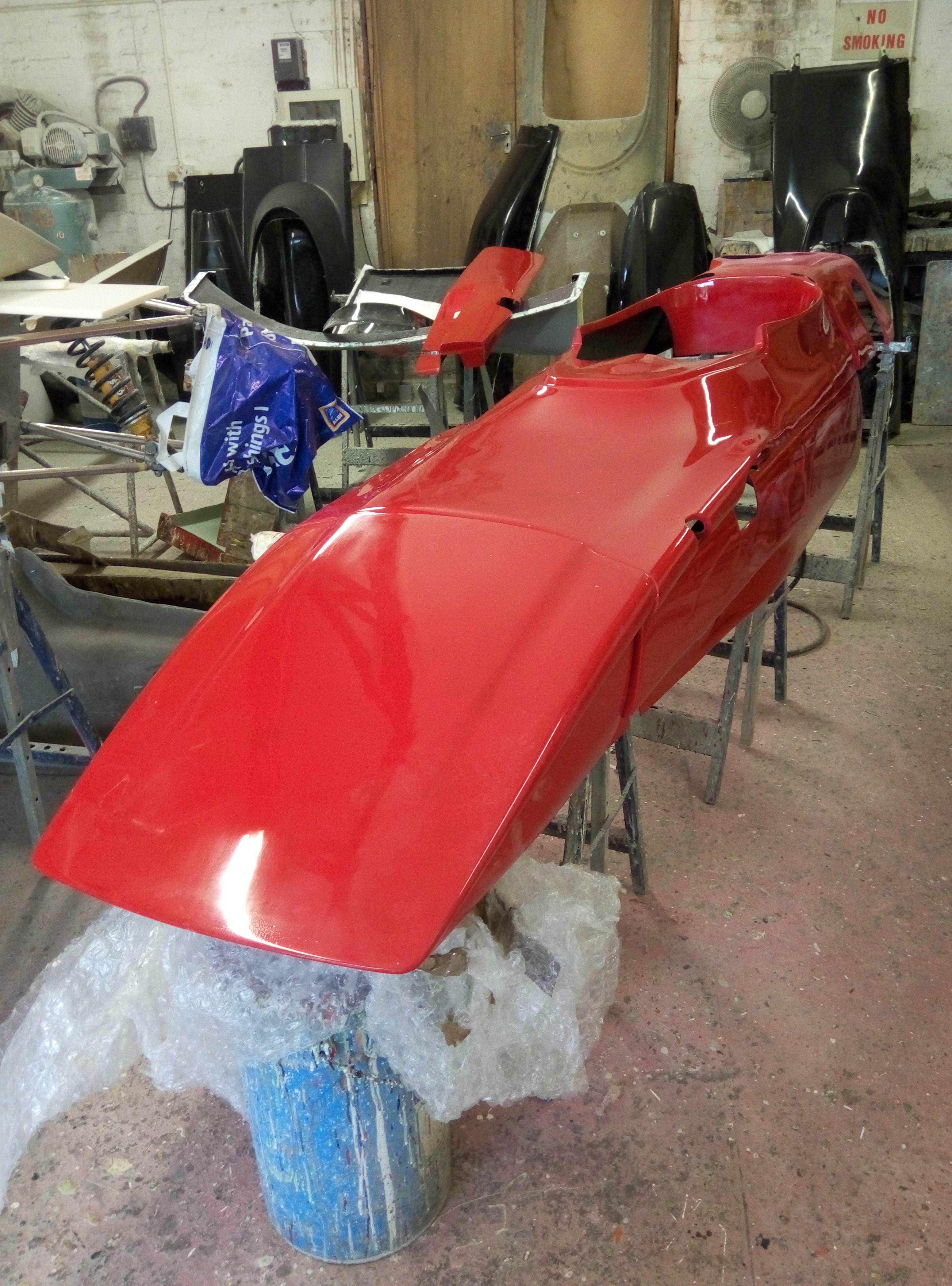

New body

Hoping that body is here in June.  So the plan right now is to strip the bent chassis down for repair and to move forward on Elden AM 73-79.

Racing highlights:  We ran ran Elden 74-5 the MK10C rebodied Falconer and the video link is:

Well we will catch up again after the SVRA Open Wheel World Challenge at Indianapolis,  in June.



Body Panels for Elden MK10B AM73-79

Posted on by
1

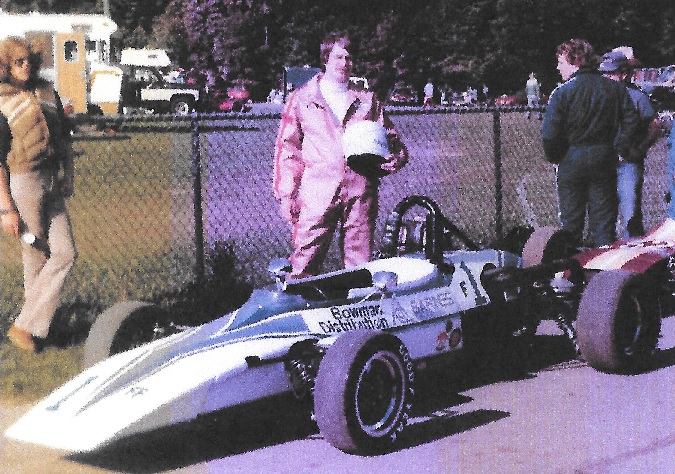

Elden MK10 B AM73-79 as raced by Jay Davis.  I wish to re body this car with the parts I already have.  Thanks to Jay for this and other pictures of the car during the time he had it.

As Raced Jay davis.jpg

On this car I got from Tim H. in Tulsa,  there were some panels that were saved from the days of Jay Davis.  Note the two holes at the back of the side body panels for radiator plumbing, as this is the remnants of conversion of this car from a MK10B to MK10C , You can see the front radiator hose openings have been glassed over from when the car was a MK10B configuration.

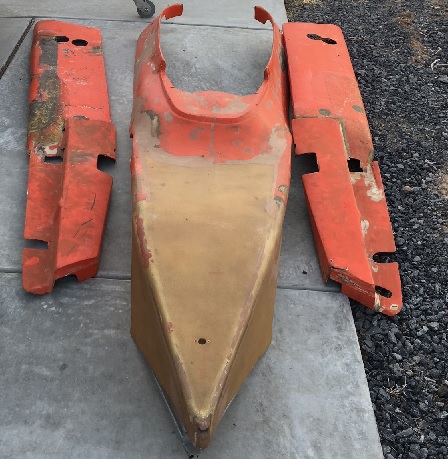

This picture shows the top cockpit using an Elden cockpit body panel with a nose grafted on.  Along side are the side body panels after much modification.

Elden #3 body parts.JPG

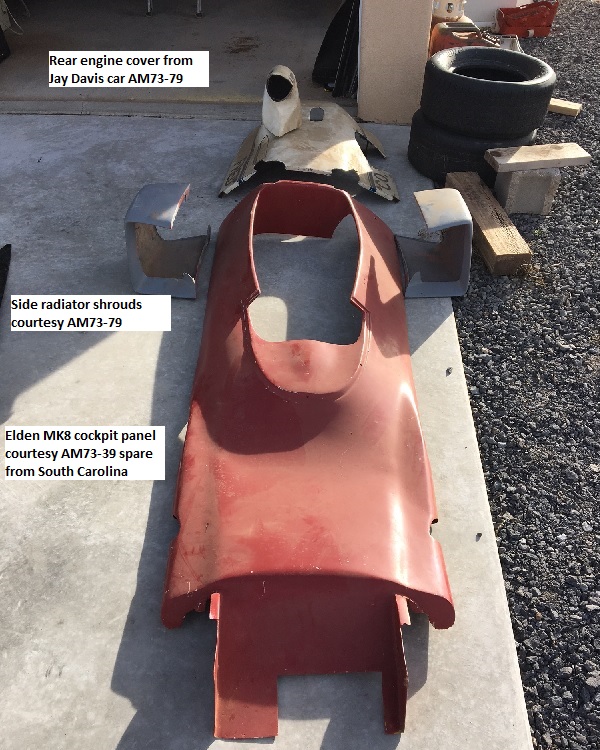

Since I want to take this car back to a Elden MK10B with the radiators behind the front wheels as is AM73-74, this next picture shows what I have to work with from my inventory:

Potential MK 10 C body panels

So it looks like I need side body panels and a nose.  I am thinking of trying to pull a mold off the last Elden MK10B AM73-74 side body panels I just got from Greg N.  He also had the wood “buck” to make a nose mold and may try to use it to make a female mold, but will have to see my fiberglass skills on the side panels.

Update Elden MK10 AM 73-39 progress

Posted on by
1

We have taken a bit of time to get busy with the MK8, The engine was built a year ago. Engine is not FF legal. Bore is +0.100 over bore with Omega pistons and a unknown cam. This engine is cool so saving it to play with.

So engine is in, transmission rebuilt, needing plumbing etc. Sent the front Armstrong shocks to Archie Hodges to be rebuilt. Using rebuilt non-adjustable Bilstein shocks on the rear.

Got the water plumbing and oil plumbing done. Electrical wiring complete. Oh sh… decide to put the body panels on and found the placement of the water swirl pots interfered. As this car was apart when we picked it up I didn’t know what was different from the MK10 Falconner. So backup and redo the swirl pot.

New battery installed checked out wiring.  Today attempted to start the engine.  Wow that is some real compression and need to have a healthy battery booster.  Try again tomorrow.

Engine runs, sounds good. Beginning checkout of systems.





1974 Elden MK10C chassis # AM 73-79 Previous Owner Comments

Posted on by
1

12-2-14
Hello. MY name is Dana Moudy and I received a email from you about my Elden FF. Sorry for the delay, but I have been super busy for the last few months.
I did own a Elden FF MK10. I bought the car about 1979 or 1980. I was autocrossing with a 67 Shelby GT-350. I decided to move up to run in b-Modified with a FF. I did some research and found out the Elden had the shortest wheelbase of I believe 83”. So it was ideal for B-mod. I won the A-mod & B-mod for 1983 SCCA regional Championships with it.

I finally started racing it in 1985 at Hallett with the COMMA race series in Club FF. I started a string of races with it in which I won 18 straight races with it. I ended with a crash caused by a driver trying to go for first place and he lost control and took off my left rear corner on the car. I repaired it and while leading with 2 laps left the only part I didn’t replace broke and I spun out with a DNF.
I then sold the car to Steve Carbone who bought it for his son to race at Hallett. He owned a Machine Shop for race engines. He took the car totally apart and put it in the back of his pickup truck and on the way to the shop to be painted and chromed he stopped at a burger place to eat. When he came out the truck had been stolen. They eventually found the truck and the chassis and all the parts were still in it. This is where I lost the trail of the car and I don’t know what happened to it.
As far as I know it was never raced at Hallett because I was still racing with a Lola T440 Club Ford. I raced it and a Royale SF with a 2000 Motor and wings. I last raced in Tiga S2000 and I never saw the car back at the track. I quit racing racing at Hallett because for several years I was doing double duty by racing a dirt midget on Friday nights at one track and Saturday nights at another track, as well as the Tiga S2000 once a month at Hallett.
I gave up the road racing and drove the dirt midgets twice a week as well as another car for my son. It was pretty nice to get money at the dirt tracks and they paid nothing for road racing. I quit racing and concentrated on my sons midget. That was around 1995 or so. My memory of racing is pretty blurred with all the races and cars after 20 years. The Elden was a MK10C I think but it had the narrow nose not the wide one which kind of looked like the ones on the Tyrell’s F1 cars at the time it was built. The car came from the Chicago area and had been racing in that region with SCCA.

I have moved and the pictures have all been put away in storage buildings so I would have to dig up some pictures which I have no idea in what boxes they are in. I do have one black and white picture that I have and I could copy it and send it to you if you will send me your address to send it to. It was bright white with a blue Ford stripe and a black stripe down the bottom of the car. It is a picture of the car with the back section of the car removed so we could work an it quicker. It was good to think about that car because I won more races in that car than any others I owned. Between the Elden and the Lola I won 27 races, I 3rd and 3 DNF’s. Quite a lot of winning in that car.
If you have any other questions email me and I will try to answer you if I remember any more. Thanks for bringing up a great time in my life and remembering how all the other drivers with better cars couldn’t believe what that little car could do. Oh, I forgot to tell you I moved the radiators from behind the front tires to next to the drivers seat to get the Transient response better and lose a little weight because I could use less water and lose a little weight at the same time. Thanks for the memories. Dana P. Moudy

Dana, Good Hearing from you and your history with the Elden. I bought an Elden Chassis from a fellow in Ok City and in reviewing the log book you owned the car from Ron Eilken and previously Jay Davis, Jay actually was able to see the car last year and assured it was his as it has special fasteners from a company he represented. Oh so interesting. A couple of pictures I have found of the car and Jay has sent some others from when he owned the car. I don’t have a body for the car but plan on the front radiator position, I Think.

Period Pictures of the Newest Elden

Posted on by
Reply

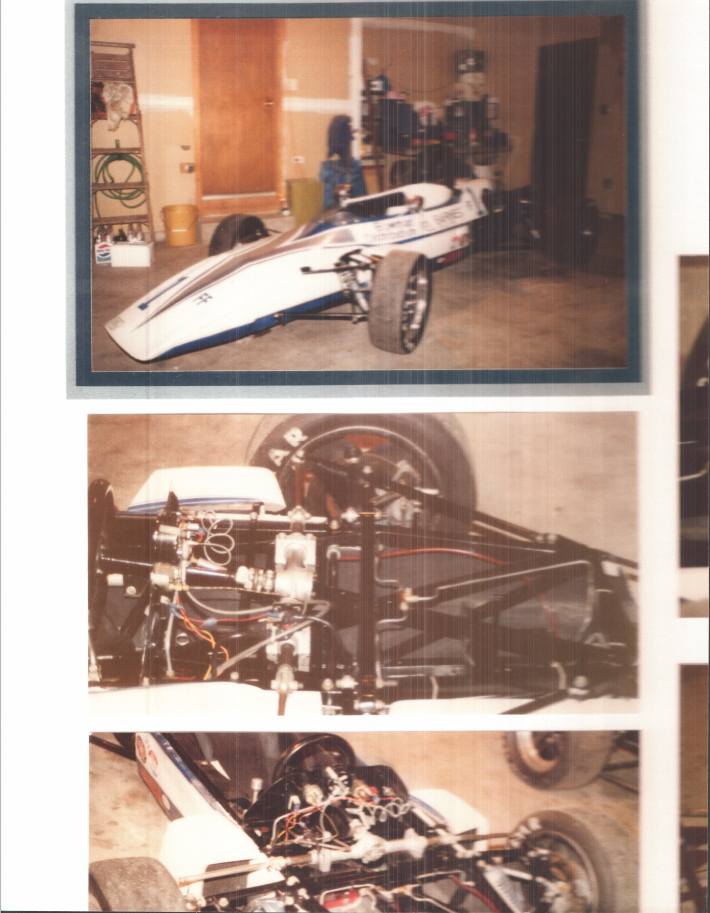

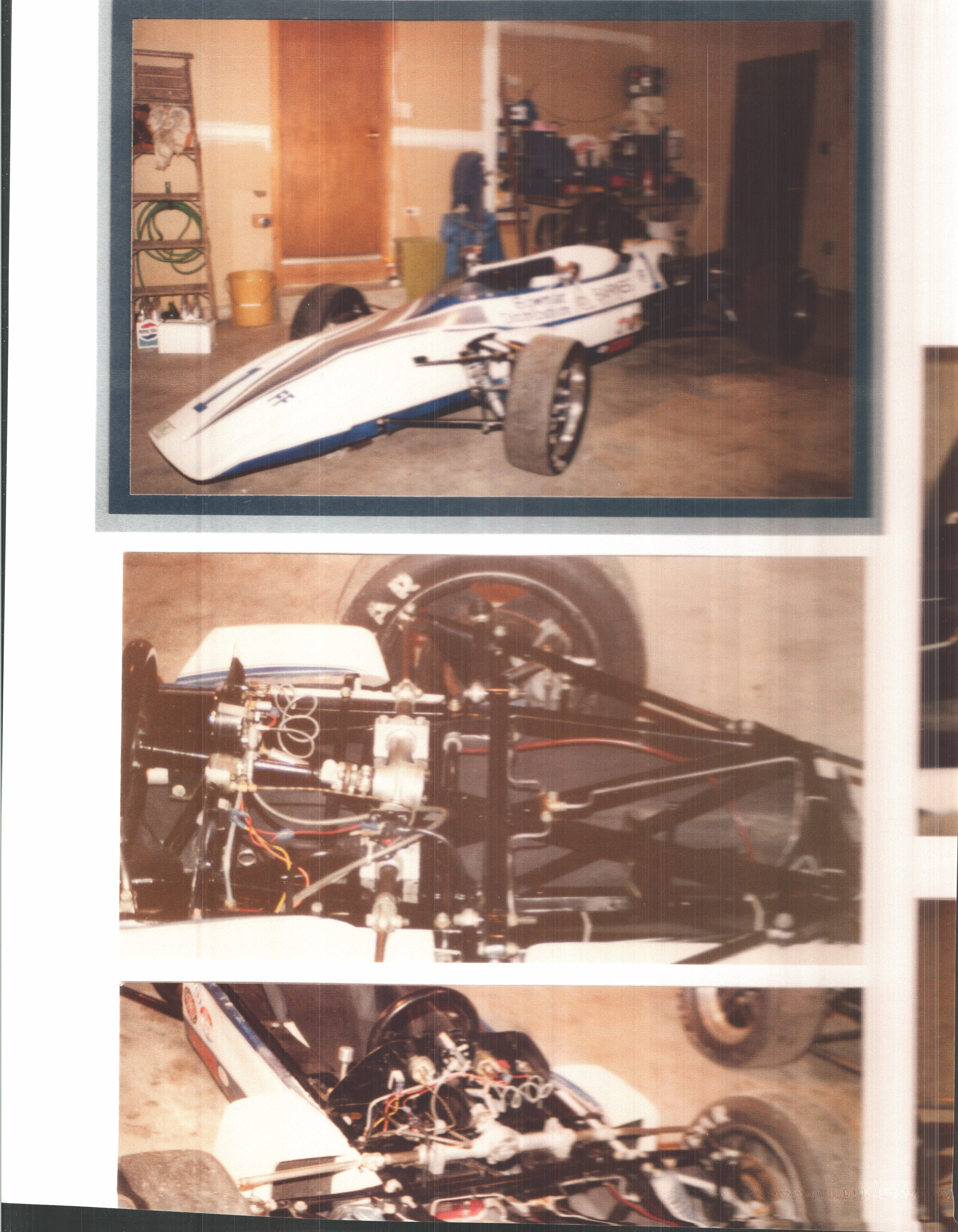

Thanks to Jay Davis, the second owner of the Elden MK10C I am posting some of his pictures he was gracious enough to share.  I was most interested in radiator location and attachment points for the same.

One of the question Jay answered for me was if the car came with an original Piper engine.  In the pictures there is a Piper cast aluminum oil sump, Piper oil pump, Piper velocity stack and Piper valve cover.  I have all but the Piper valve cover which Jay says he still has.  Also Jay says that the original block had some weird gob of weld/epoxy covering block damage.  The block I have from the car has two areasImageImage that have repairs from internal shrapnel. Also the cast oil sump shows the same.  So I believe I have the original engine in the car and plan on using it.

Adding to the Collection, Elden 1974 MK10C

Posted on by
Reply

Just returned from Oklahoma City where I picked up a 1974 Elden MK10C that a restoration was started.  Thanks to Tim H. he had a nice start to the restoration of chassis # AM 73-79.

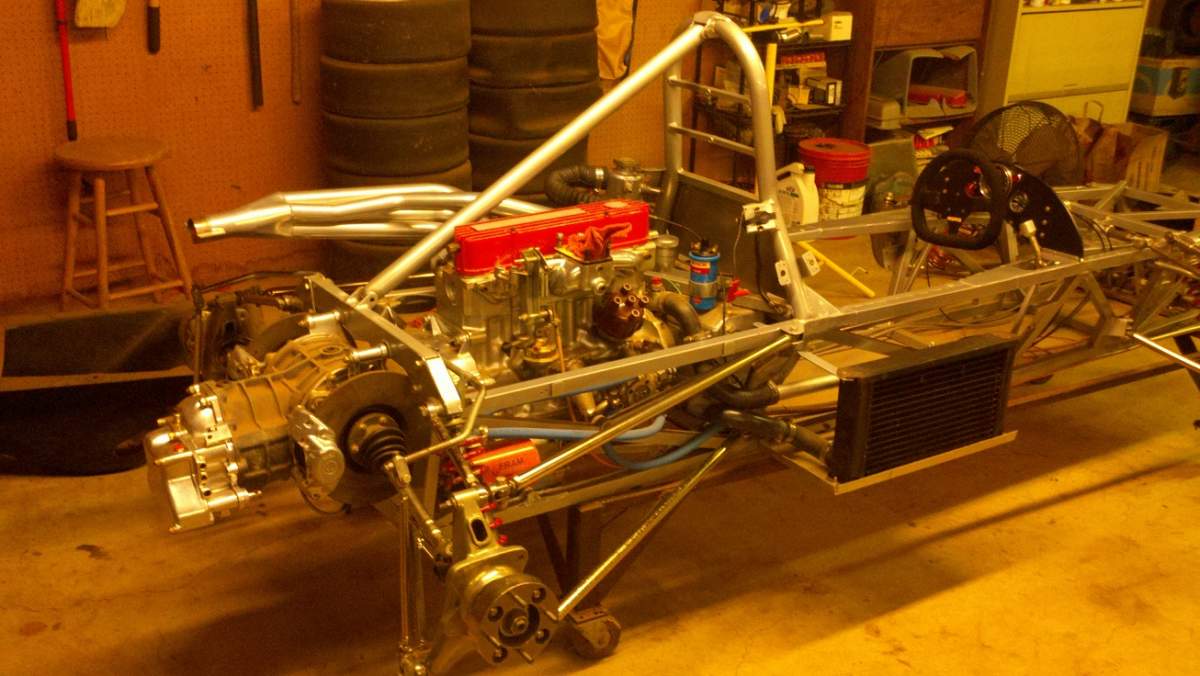

Elden Mk10 - 001-Small A quick review of the SCCA Log Book show’s Gary Hackbarth was the original owner and raced the car in CenDiv bringing a 1974 Regional Class Championship (notebook entry not verified by SCCA) [23 races in 2 years].

Additional owners: Mike Piccone, Jay Davis, Ron Eilken, Dana Moudy and Joel Evans, Brian Goellnicnt, Steve Carbone, Steve Barton and Tim Henson.

One of the mysteries I am trying discern is the original location of the radiators on this car.  (Current location was done by the last owner for his application)  Pictures of the car in 1985 found in the second SCCA Log Book:  SCCA #2 pictures p2-3   don’t show the radiators, but leaves you to assume back by the seat area.   In a solo picture shows a wedge nose and appears to have the radiators on the sides but where?  1985 car at Solo event with rad shrouds visible  But then I have pictures showing the near the middle of the car but with a more pointy nose:   Car #7 Front View rad at rearAny help here would be great.
